Easy opreating 523.5nm Solid State High Stability Green Laser 200~800mW

Price: $100.00


Qty.
+-

Easy opreating 523.5nm Solid State High Stability Green Laser 200~800mW

Features:
1.Ultra compact
2.Long lifetime
3.Cost-effectiveness
4.Easy opreating

Applications:
1.Collimation
2.Laser medical treatment
3.Scientific experiment
4.Optical instrument


Note:
1. This is a custom laser.
2. $100 is the deposit, not the final price of this laser.
3. Please contact us and tell us your all parameter reqirements,then we can offer you a quotation based on your needs.

SPECIFICATIONS:

Product Name 523.5nm High Stability Green Laser
Model MGL-N-523.5
Wavelength (nm) 523.5±1
Output power (mW) >200, 250, 300, …, 800
Operating mode CW
Transverse mode Near TEM00
Power stability (rms, over 4 hours) <5%, <10%
M 2 factor 3~5
Beam divergence, full angle (mrad) <1.5
Beam diameter at the aperture (mm)  ~3.0
Beam height from base plate (mm) 68.5
Polarization ratio >100:1
Warm-up time (minutes) <10
Operating temperature (℃) 10~35
Power supply(90-264VAC) PSU-H-LED/PSU-H-FDA
TTL / Analog modulation TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional
Expected lifetime (hours) 10000
Warranty period 1 year

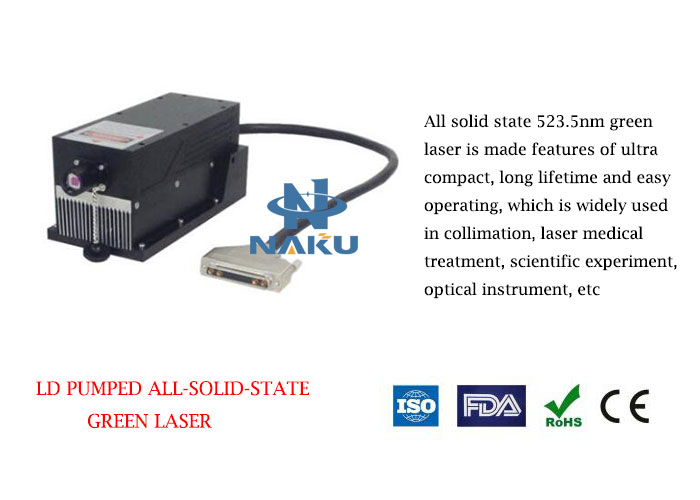

523.5nm High Stability Green Laser 200~800mW

523.5nm High Stability Green Laser 200~800mW
