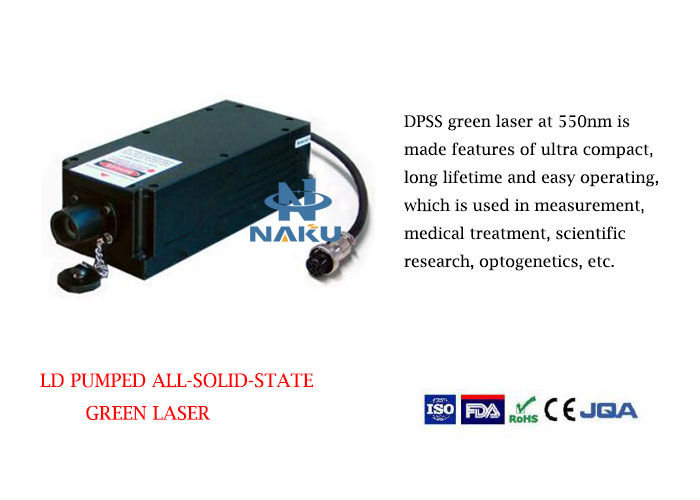

Ultra Compact High Stability Long Lifetime 550nm Green Laser 1~80mW
Features:
1.Ultra compact
2.Long lifetime
3.Low cost
4. Easy operating
Applications:
1.Scientific experiment
2.Optical sensor
3.Measurement
4.Instrument
5.Communication
6.Spectrum analysis
Note:
1. This is a custom laser.
2. $100 is the deposit, not the final price of this laser.
3. Please contact us and tell us your all parameter reqirements,then we can offer you a quotation based on your needs.
SPECIFICATIONS:
Product Name | 550nm High Stability Green Laser |
Model | MGL-FN-550 |
Wavelength (nm) | 550±1 |
Output power (mW) | >1, 5, 10, 20, …, 80 |
Operating mode | CW |
Transverse mode | Near TEM00 |
Power stability (rms, over 4 hours) | <3%, <5% |
M 2 factor | <1.5 |
Beam divergence, full angle (mrad) | <1.5 |
Beam diameter at the aperture (mm) | ~2.0 |
Beam height from base plate (mm) | 27.4 |
Polarization ratio | >100:1 |
Pointing stability after warm-up (mrad) | <0.05 |
Warm-up time (minutes) | <10 |
Operating temperature (℃) | 10~35 |

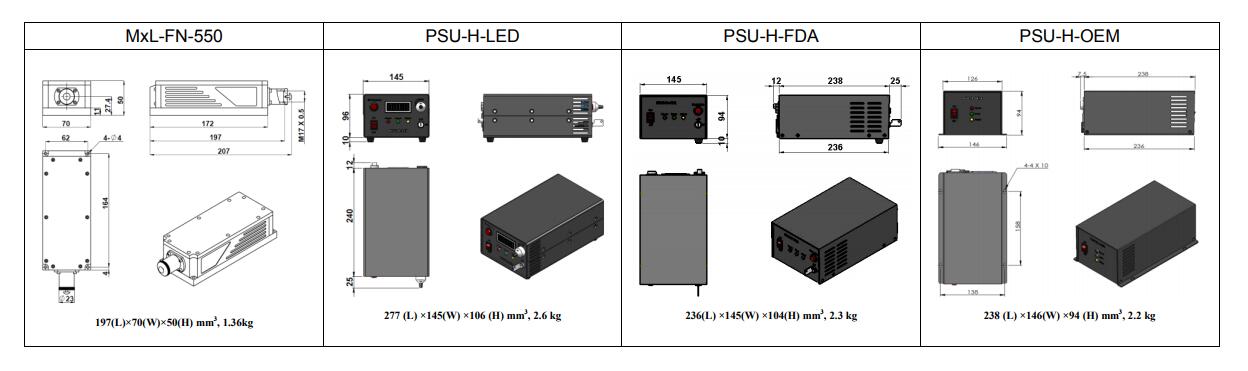

Power supply(90-264VAC) | PSU-H-LED PSU-H-FDA PSU-H-OEM |
Modulation Option | TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option |
Expected lifetime (hours) | 10000 |
Warranty period | 1 year |
