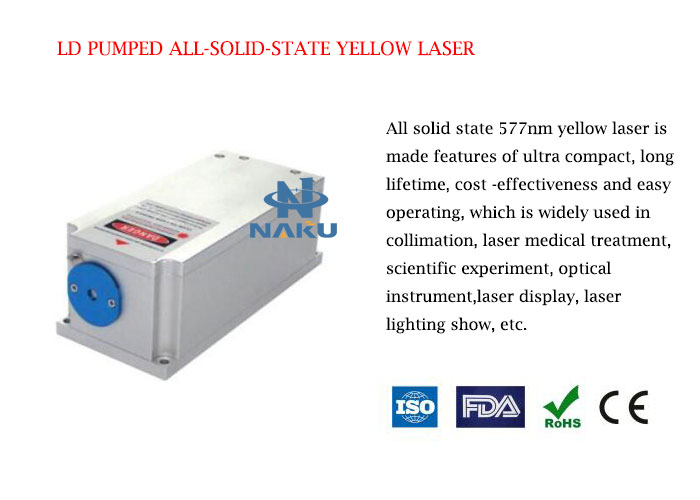

High Stability 577nm Low Noise DPSS Yellow Laser 1~200mW

Price: $100.00


High Stability 577nm  Low Noise DPSS Yellow Laser 1~200mW

1.Ultra compact
2.Long lifetime
3.High Stability and reliability
4.Easy operating

1.Scientific experiment
2.Medical measurement
4.Spectrum analysis

1. This is a custom laser.
2. $100 is the deposit, not the final price of this laser.
3. Please contact us and tell us your all parameter reqirements,then we can offer you a quotation based on your needs.


Product Name 577nm Low Noise Yellow Laser
Model MLL-U-577
Wavelength (nm) 577±2
Output power (mW) >10, 20, 50, …, 200
Operating mode CW
Transverse mode TEM00
Power stability (rms, over 4 hours) <1%, <3%,<5%,<10%
Noise of amplitude (rms, 1Hz~20MHz) <0.5%, <1%
M 2 factor <1.2
Beam divergence, full angle (mrad) <1.5
Beam diameter at the aperture (1/e2 , mm) ~1.0
Beam height from base plate (mm) 27.4
Polarization ratio >100:1, Horizontal±5 degree (Vertical Optional)
Pointing stability after warm-up (mrad) <0.05
Warm-up time (minutes) <10
Operating temperature (℃) 10-40

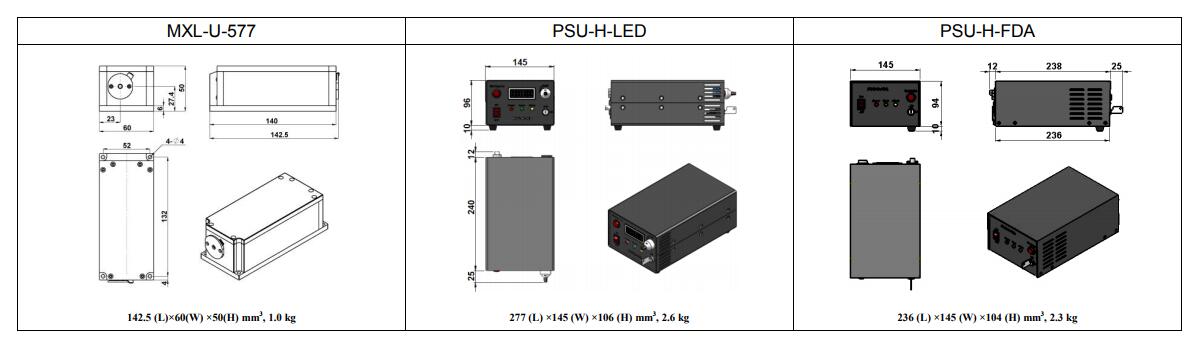

Power supply(90-264VAC) PSU-H-LED/PSU-H-FDA
Modulation option TTL on/off, 1Hz-1KHz
Expected lifetime (hours) 10000
Warranty period 1 year
577nm  Low Noise DPSS Yellow Laser 1~200mW

577nm  Low Noise DPSS Yellow Laser 1~200mW
