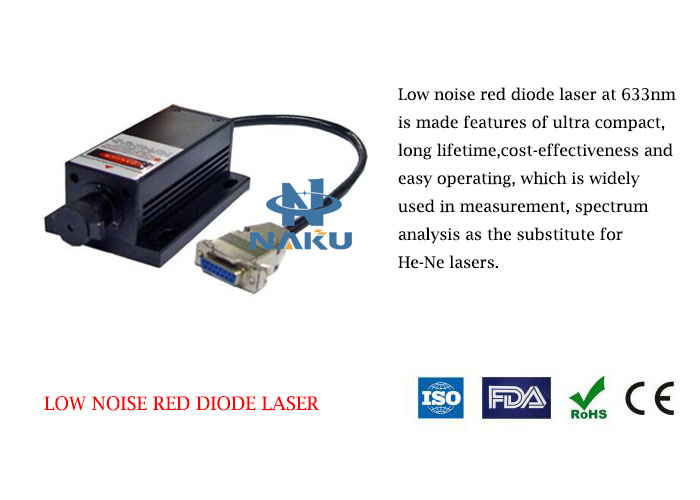

Ultra Compact Easy Operating 633nm Low Noise Red Laser 1~500mW

Price: $100.00


Qty.
+-

Ultra Compact Easy Operating 633nm Low Noise Red Laser 1~500mW

Features:
1.Ultra compact
2.Long lifetime
3.Cost-effectiveness
4. Easy operating

Applications:
1.Scientific experiment
2.Optical sensor
3.Measurement
4.Instrument
5.Communication
6.Spectrum analysis


Note:
1. This is a custom laser.
2. $100 is the deposit, not the final price of this laser.
3. Please contact us and tell us your all parameter reqirements,then we can offer you a quotation based on your needs.

SPECIFICATIONS:

Product Name 633nm Low Noise Red Laser
Model MLL-III-633
Wavelength (nm) 633±3
Output power (mW) >1,100, 200, … , 500
Transverse mode Multimode
Operating mode CW
Power stability (rms, over 4 hours) <1%, <3%, <5%
Noise of amplitude(rms,20Hz~20MHz) <1%
Beam divergence, full angle (mrad) <2.5
Beam diameter at the aperture (1/e2 , mm) ~5×8
Beam height from base plate (mm) 24.8
Warm-up time (minutes) <10
Operating temperature (¡æ) 10~35
Power supply(85-264VAC) PSU-III-LED/PSU-III-FDA
TTL / Analog modulation TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional
Expected lifetime (hours) 10000
Warranty period 1 year
633nm Low Noise Red Laser 1~500mW

633nm Low Noise Red Laser 1~500mW
