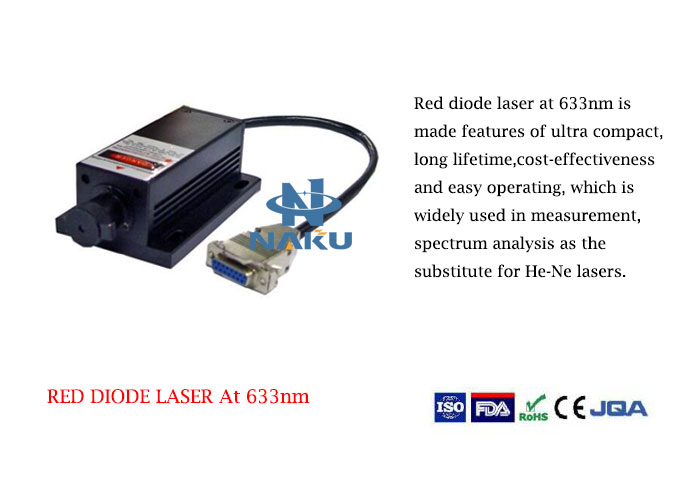

High Stability Long Lifetime 633nm Red Laser 1~80mW
Features:
1.Ultra compact
2.Long lifetime
3.Low cost
4. Easy operating
Applications:
1.Measurement
2.Spectrum analysis
3.Substitute for He-Ne lasers
Note:
1. This is a custom laser.
2. $100 is the deposit, not the final price of this laser.
3. Please contact us and tell us your all parameter reqirements,then we can offer you a quotation based on your needs.
SPECIFICATIONS:
| Product Name | 633nm High Stability Red Laser |
| Model | MRL-III-633L |
| Wavelength (nm) | 633±3 |
| Output power (mW) | >1,10,20,…, 80 |
| Operating mode | CW |
| Transverse mode | Near TEM00 |
| Power stability (rms, over 4 hours) | <1%, <3%, <5% |
| M 2 factor | <1.5 |
| Beam divergence, full angle (mrad) | <1.5 |
| Beam diameter at the aperture (mm) | ~3.0 |
| Beam height from base plate (mm) | 24.8 |
| Polarization ratio | >50:1 (>100:1, optional), Horizontal±5 degree (Vertical Optional) |
| Pointing stability after warm-up (mrad) | <0.05 |
| Warm-up time (minutes) | <5 |
| Operating temperature (℃) | 10~35 |

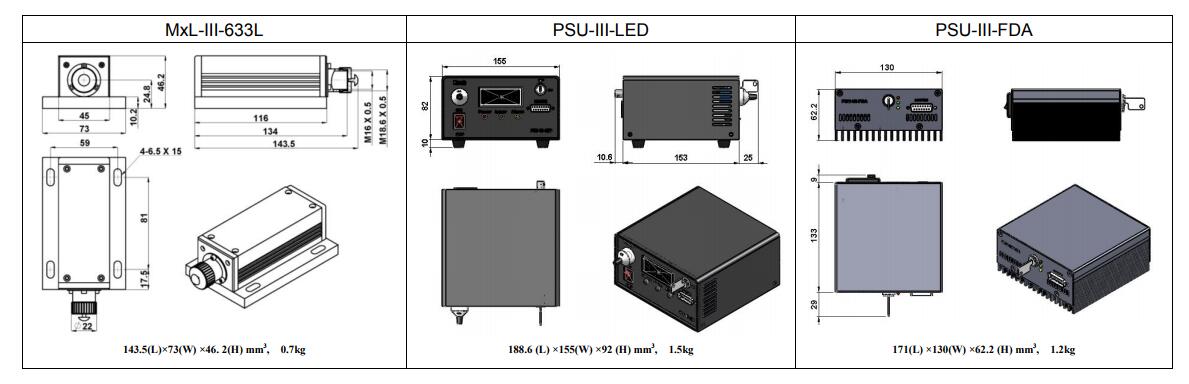

| Power supply(90-264VAC) | PSU-III-LED/PSU-III-FDA |
| TTL / Analog modulation | TTL or Analog with 1Hz-1KHz 1KHz-10KHz, 10KHz-30KHz optional |
| Expected lifetime (hours) | 10000 |
| Warranty period | 1 year |
