High Stability Easy Operating 860nm Infrared Diode Laser 1~1000mW

Price: $115.00


Qty.
+-

High Stability Easy Operating 860nm Infrared Diode Laser 1~1000mW

Features:
1.Ultra compact
2.Long lifetime
3.Cost-effectiveness
4. Easy operating

Applications:
1.Measurement
2.Spectrum analysis


Note:
1. This is a custom laser.
2. $100 is the deposit, not the final price of this laser.
3. Please contact us and tell us your all parameter reqirements,then we can offer you a quotation based on your needs.

SPECIFICATIONS:

Product Name 860nm High Stability Diode Laser
Model MDL-III-860
Wavelength (nm) 860±10
Output power (mW) >1,100,200,…, 1000
Transverse mode Multimode
Operating mode CW
Power stability (rms, over 4 hours) <1%, <3%, <5%
Beam divergence, full angle (mrad) <3.0
Beam diameter at the aperture (1/e2 , mm) ~5×8
Beam height from base plate (mm) 24.8
Warm-up time (minutes) <5
Operating temperature (¡æ) 10~35

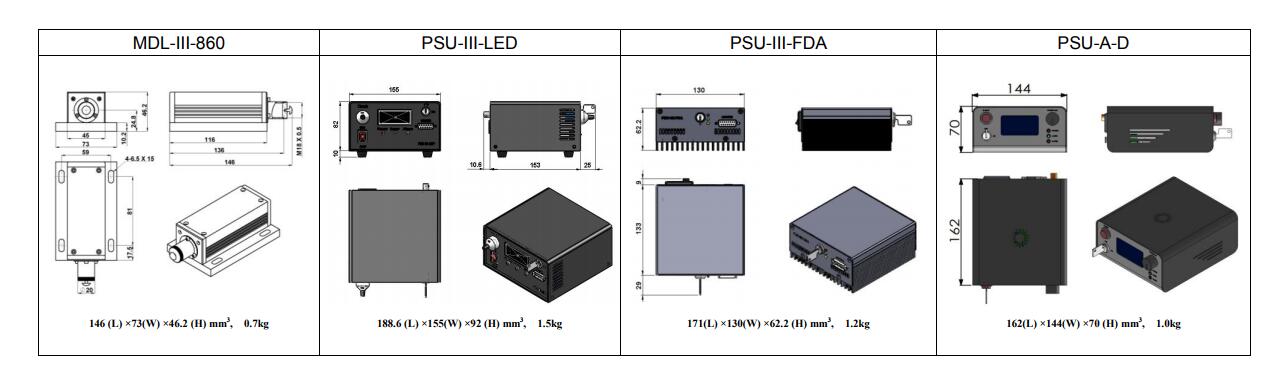

Power supply 85-264VAC PSU-III-LED/ PSU-III-FDA (Frequency for 1Hz-30kHz)
100-240VAC PSU-A-D (Frequency for 30kHz -100kHz)
TTL / Analog modulation TTL or Analog with 1Hz-1kHz 1kHz-10kHz, 10kHz-30kHz, 30kHz-100kHz optional
Expected lifetime (hours) 10000
Warranty period 1 year

This is 860nm laser, we can provide other models of customization, the following is a list of specific models.

MODEL OPTION:

Laser Type Model Output Power(mW)
Low Noise Infrared Laser at 860nm MDL-III-860 1~1000
High Stability Infrared Laser at 860nm MDL-III-860 1~1000
MDL-H-860 1000~4000
Fiber Coupled Laser System at 860nm MDL-860(FC) 1~3200
FC-860 1~3200
